Lifting Equipment with a special focus on safety

Sheet Pile Clamps – Sheet Pile Claws

– handy lifting tools for quick and safe lifting and pitching sheet piles



Effective and time saving gear for Contractors

Practical alternative to heavy lifting shackles



All Dawson vibratory hammers are delivered with Sheet Pile Camp

Sheet Pile Clamp

Sheet Pile Clamps are light and handy lifting claws – lifting clamps – for safe lifting and stabbing of sheet piles. They are very useful when driving sheet piles with hydraulic vibratory hammers – Piling Vibrators. Sheet Pile Clamps are convenient and effective alternatives to heavy lifting clamps.

Model Range from 2 to 8 tons

Nor-Trade offers Lifting and Handling Equipment for many purposes and with special emphasis on safety.

In addition to Sheet Pile Clamps:

Ground Release Shackles

Steel Handling Shoes

Ratchet Release Shackles

Pipe Lifting Shoes

Ratchet Beam Shackles

Hydraulic 100 t Shackles

Lifting Gear-Lifting Equipment-Lifting Clamps-Lifting Claws

Lifting Clamps – Lifting Claws – for many applications. Remote Released Clamps minimize the risk of personal injury. The safe choice for Foundation Contractors

Sheet Pile Clamp with Safety Latch

Kædeklemme-Løfteudstyr-Løftegrej -Løftegrej spuns

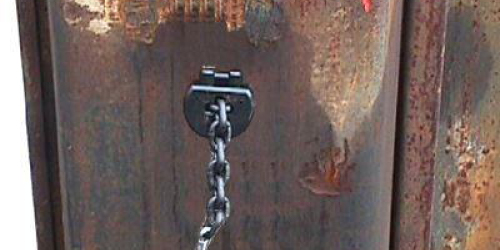

Chain Clamp System in Use

indhold-images-Chain-Clamps-02-500x250px

Function

The clamp system consists of a locking clamp and a chain with a piece of wire mounted to the one end. The free end of the chain is mounted to a wire in a hoisting system – e.g. on a piling machine or directly to a vibratory hammer. The clamp body indexes along the links of the chain and locks into place giving a quick and stable chain lock for lifting.

Safety Latch

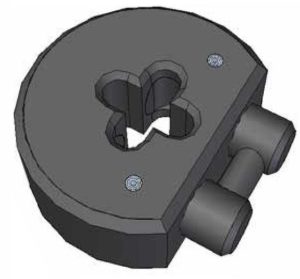

The Sheet Pile Clamps are available with or without a safety latch – please note the yellow part in the picture. The safety latch contributes to extra safety.





Operation

To lift a sheet pile, thread the wire and – of safety reasons – at least 6 chains links through the hole in the sheet pile, and then through the opening in the locking clamp, while the spring operated trapping pin of the clamp is pressed in with a thumb. When the pressure is loosened the trapping pin assembly will automatically lock to the chain. Hoisting can then take place.

After hoisting the Sheet Pile Clamp is loosened by pushing in the trapping pin and the clamp is removed from the chain.

When not in use the piling operator with advantage can have the clamp in his pocket.

Sheet Pile Clamp – Model Range



The Dawson clamps are available in three sizes:

  • Chain type 8 mm with safe working load (SWL) 2 tonnes.
  • Chain type 10 mm with safe working load 3,2 tonnes.
  • Chain type 16 mm with safe working load 8 tonnes

The type with safety latch has a “-2” in is part number.
