Hydraulic 100 t Shackles

Dawson 100 Tonnes Hydraulic Remote Release Shackle

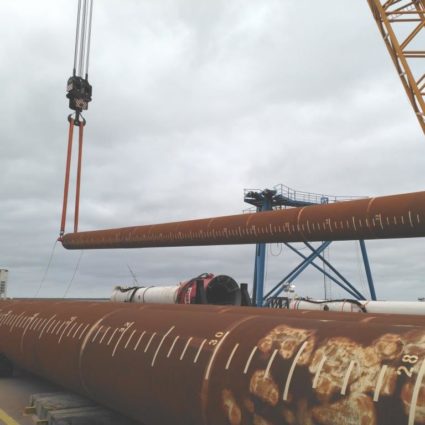

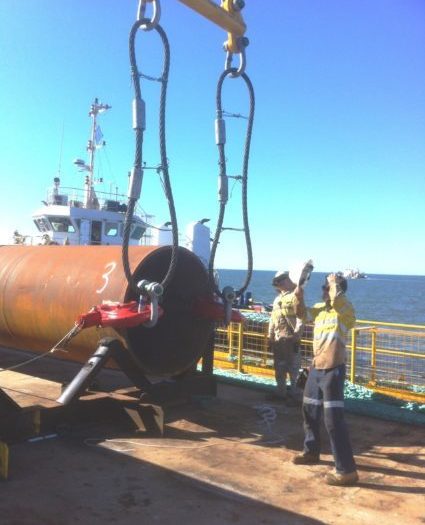

Heavy Lifting of Large Tubes

Hydraulically operated Locking Pin enable the operator to operate the Shackle from a safe position.

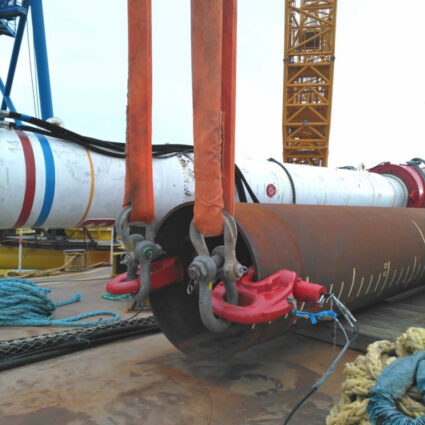

When used in pairs, tubes weighing up to 200 tons can be lifted.

Weight of Shackle 410Kg

Nor-Trade offers lifting tools for many applications with special focus on safety

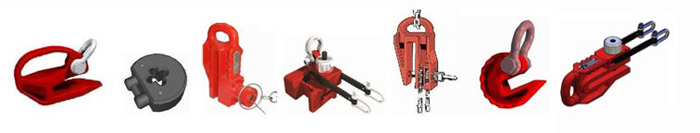

Apart from the hydraulic 100 t Remote Release Lifting Shackle we offer several smaller types from 2.5 t to 40 t:

Ground Release Shackles

Steel Handling Shoes

Pipe Lifting Shoe

Chain Clamps

Ratchet Beam Shackles

Ratchet Release Shackles

Function

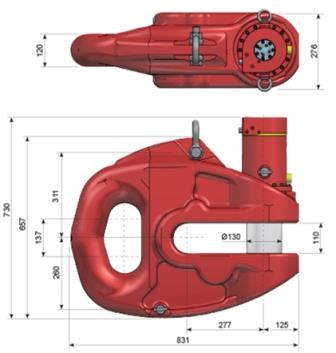

The pin diameter is 130 mm and retracted and engaged hydraulically with a hand pump on the ground. The system is provided with a spooler so the hose is kept under complete control.

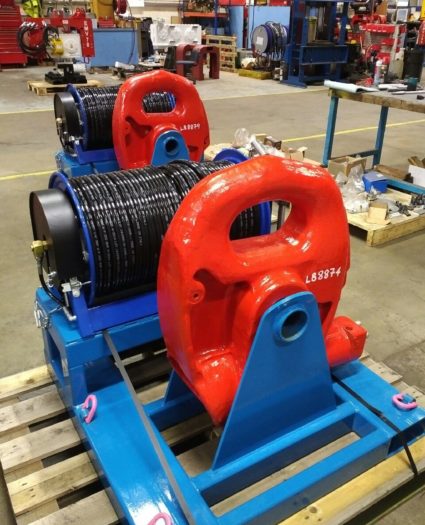

The hose length is 60 m allowing long piles to be positioned.The shackle and spooler are mounted into a frame making loading, unloading and moving around at the job site easy and with just a single crane lift.

Safety

• The main body is tested to 5 times Safe Working Load (SWL).
• Each shackle is proof tested to 2 times SWL..
